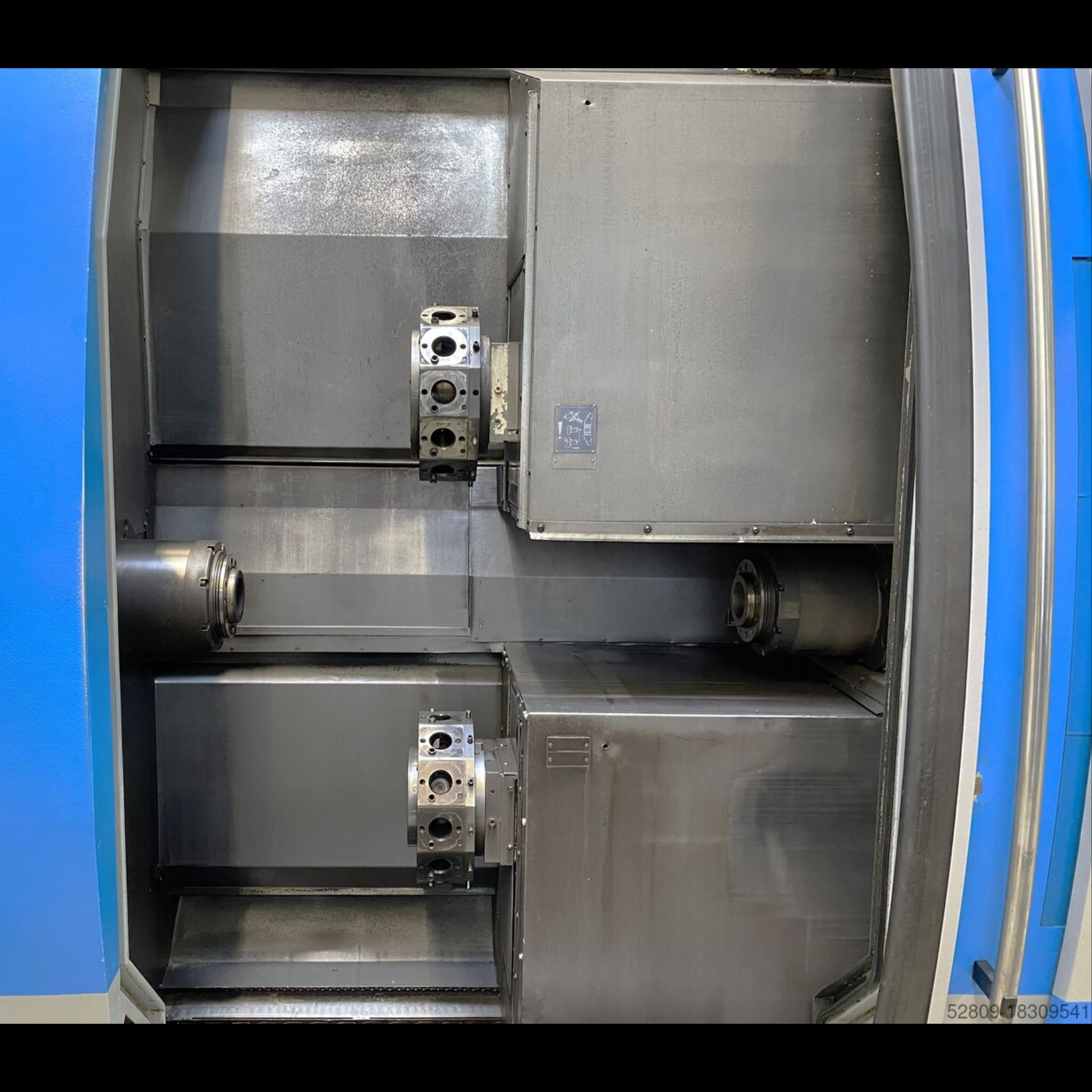

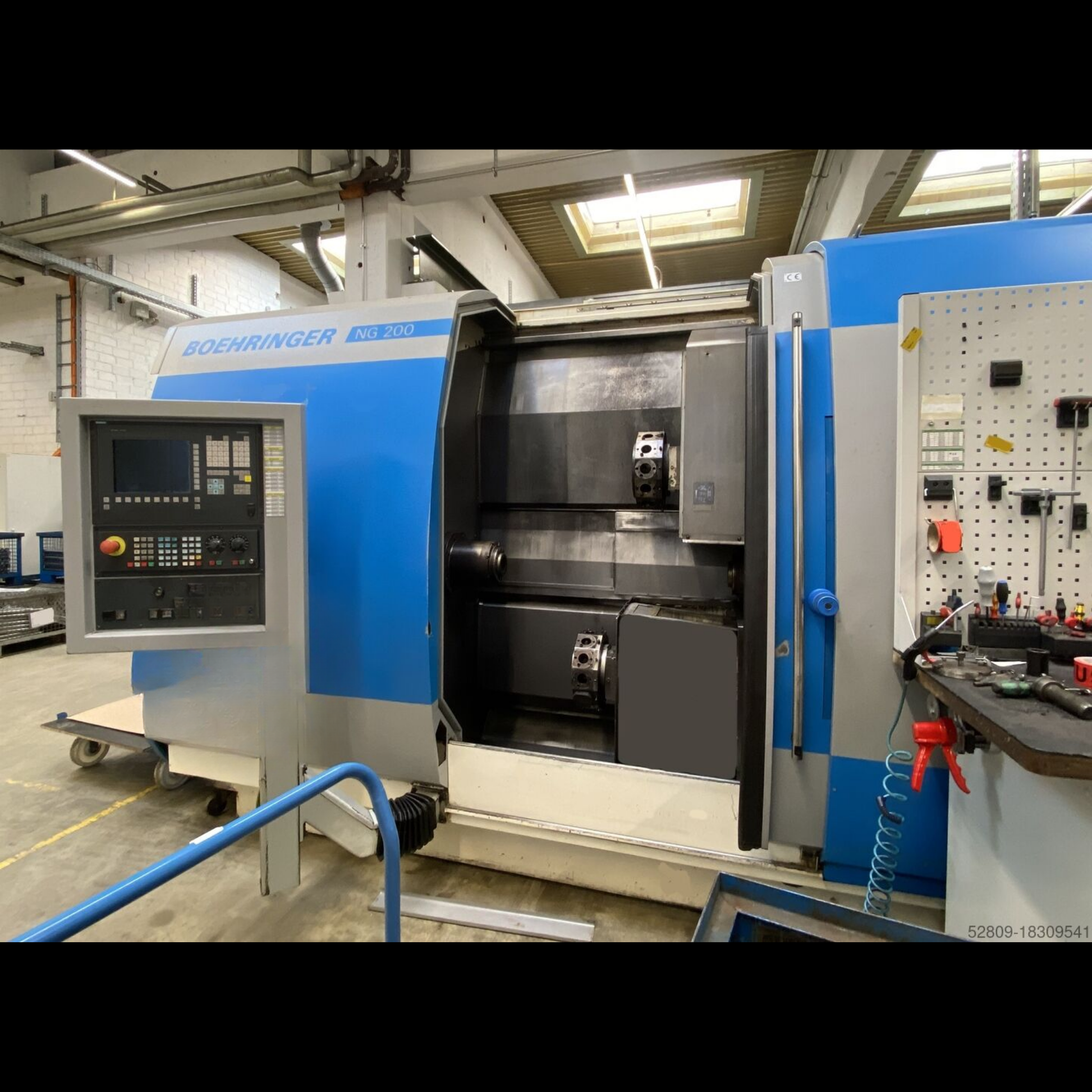

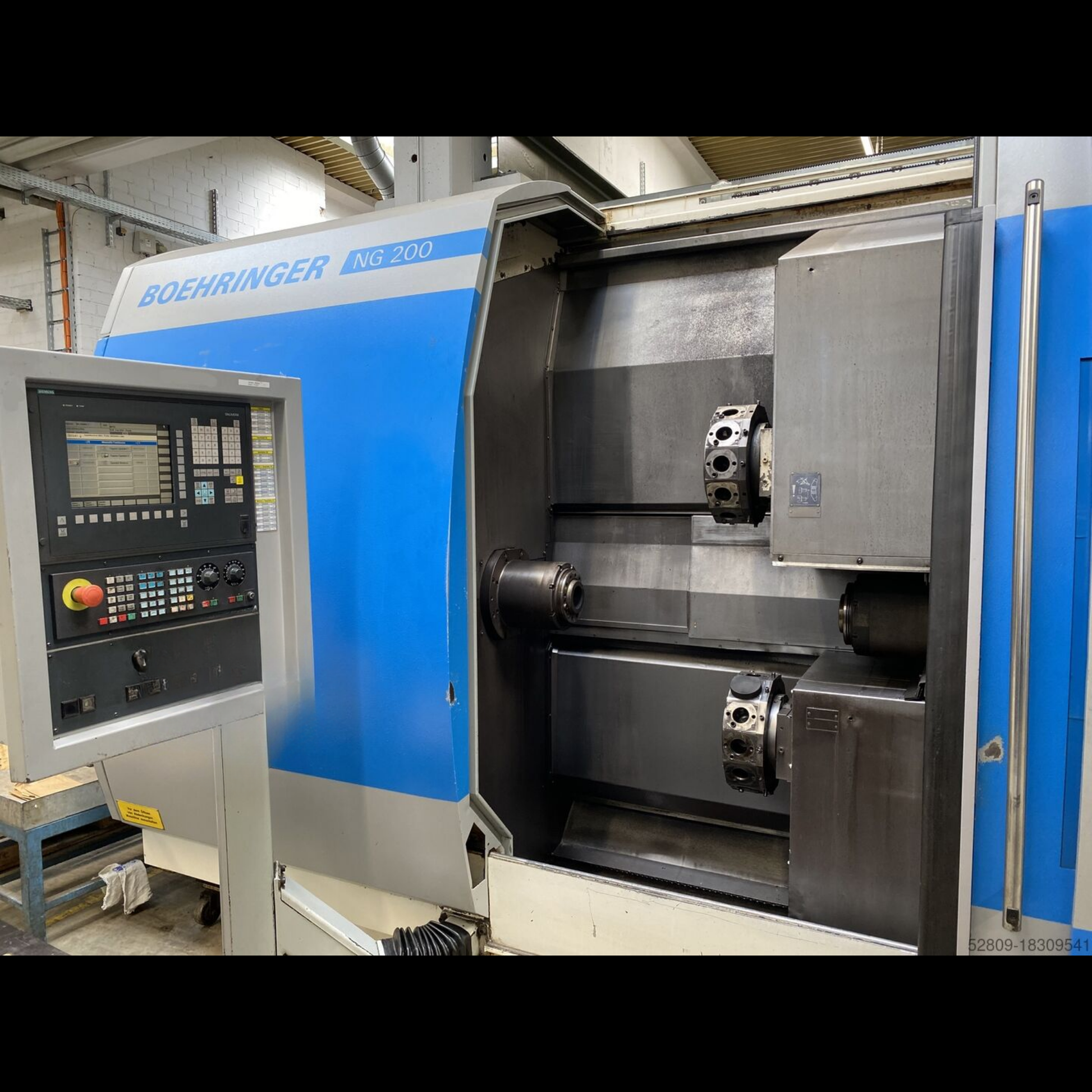

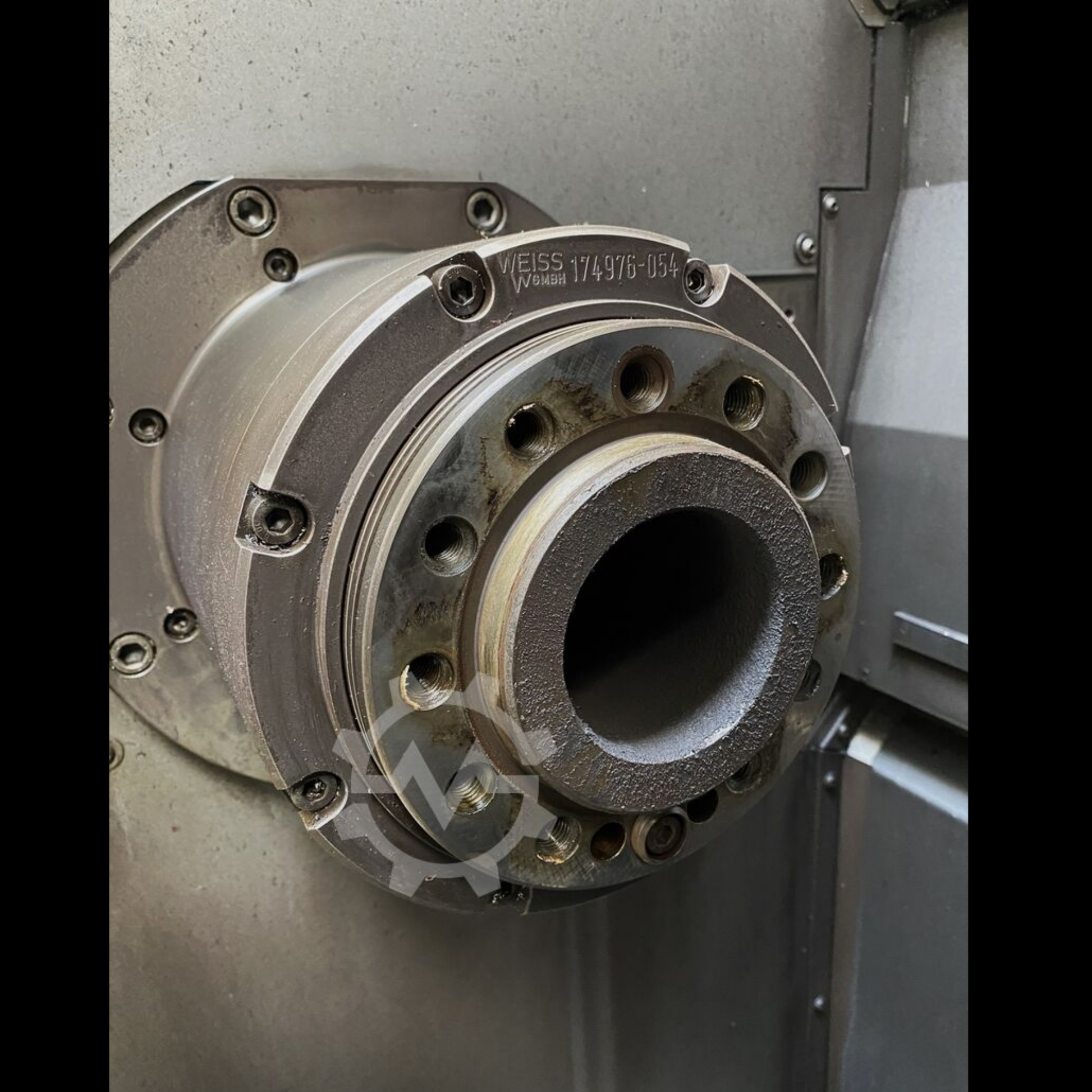

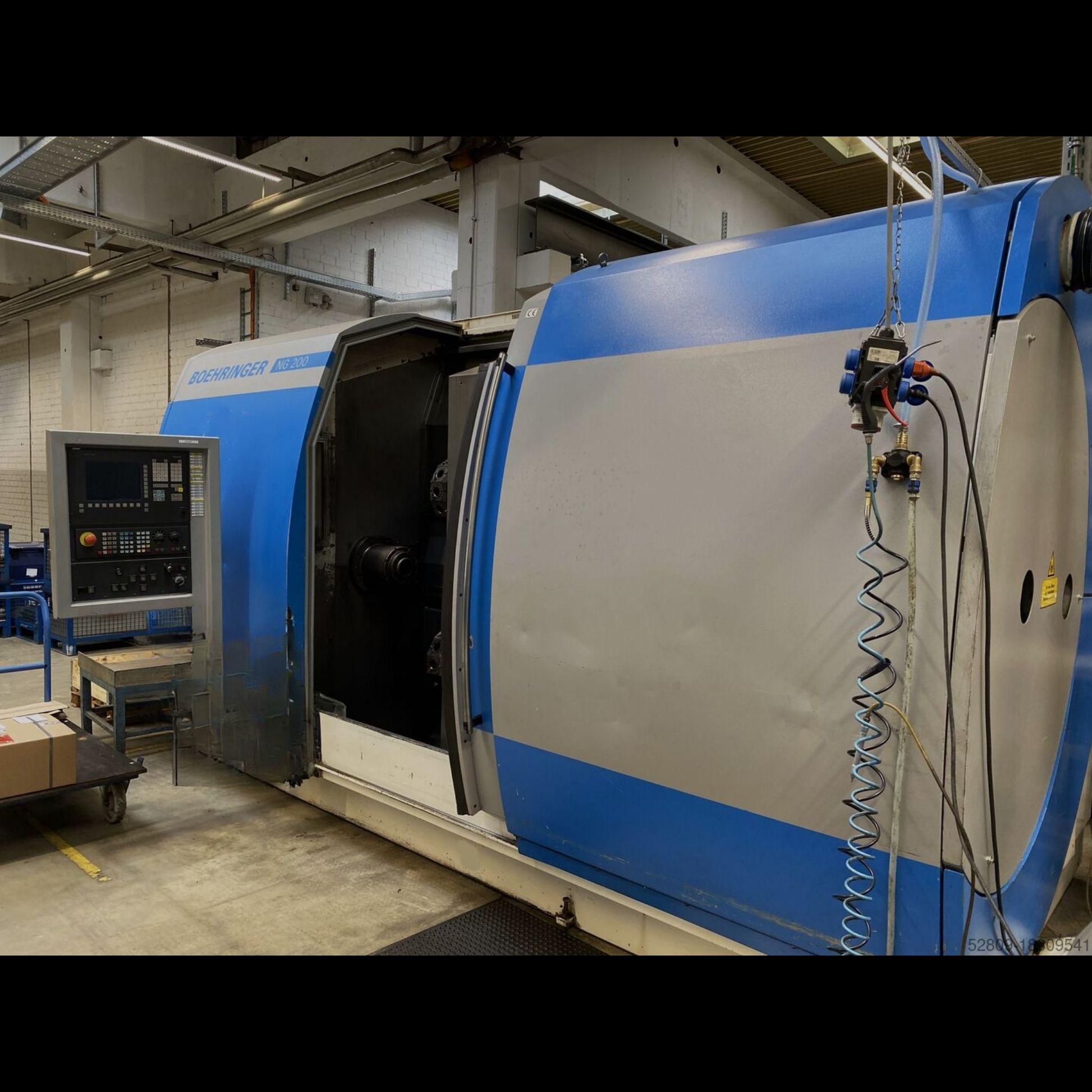

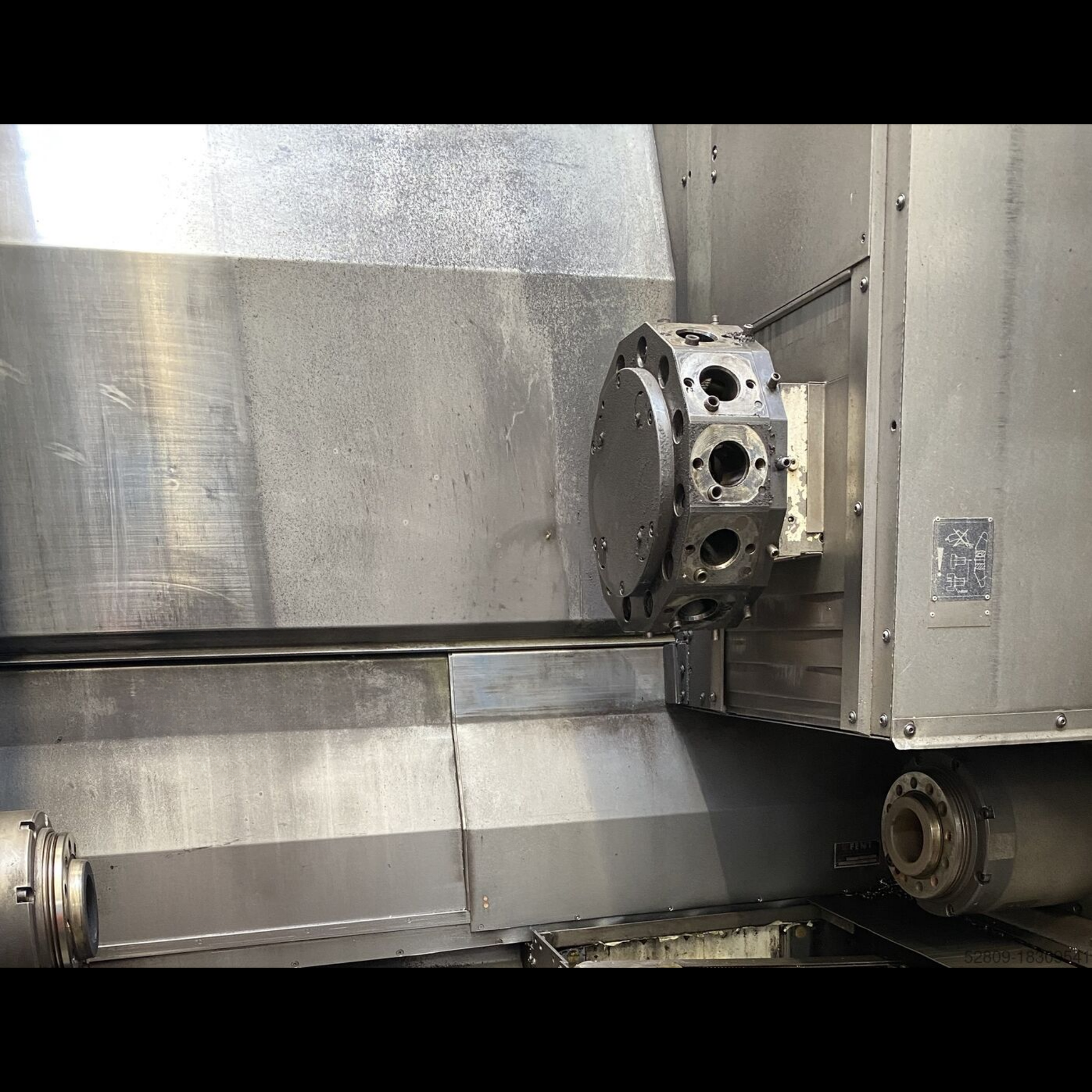

Universal CNC lathe BOEHRINGER NG 200 Manufacturer: BOEHRINGER Type: NG200 CNC double Control unit: Siemens 840D Year of construction: 10/2001 Turning diameter: 290 mm Turning length: 850 mm Control: SIEMENS 840 D Turning diameter over bed: 600 mm Turret 1 Turret 2 Counter spindle Counter spindle stock Tailstock C-axis Driven tools Automatic machine doors - newly retrofitted Z-axis resolution: 40nm (2nm interpolated) Travel path in Z: 740mm Rapid traverse speed in Z: 25 m/min Centering tip SK 30 X-axis resolution: 125nm (8nm interpolated) Travel path in Z: 220mm Rapid traverse speed in Z: 25 m/min Distance between main and counter spindle: 1034mm Drive power: 30-72 kW Torque: 662 Nm Max. speed range: 4500 rpm Spindle head: size 6/8 DIN 55026 Spindle diameter in front bearing: 120 mm Chuck diameter: 200-315mm Spindle bore: 103 mm Tailstock quill holder MK: MK 4 Machine weight approx. [weight]: 11 t Space required approx. [needed space]: 6.0x2.3x2.5 m Complete documentation is available. Inspection under power can be arranged at short notice. We are happy to answer any further questions you may have. Price, ex warehouse here plus VAT.
Condition: good - ready for demonstration
Delivery: ex warehouse - as seen
Payment: net - after receipt of invoice Nebin R Ejvr Eqgs Dujwi
