VDF Boehringer NG 200/2

Machine type: CNC lathe

Manufacturer: VDF Boehringer

Model: NG 200/2

Condition: used

Functionality: limited functionality

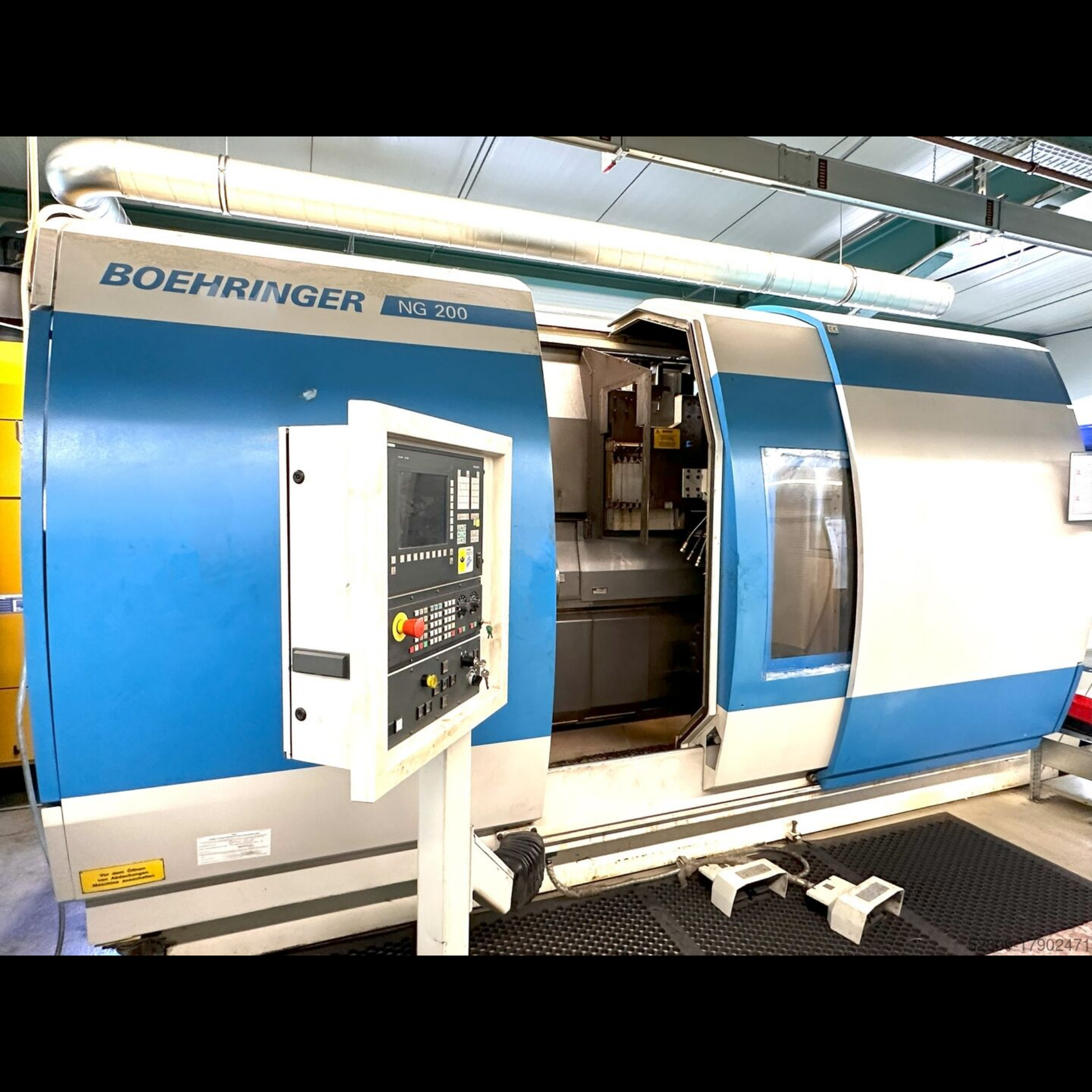

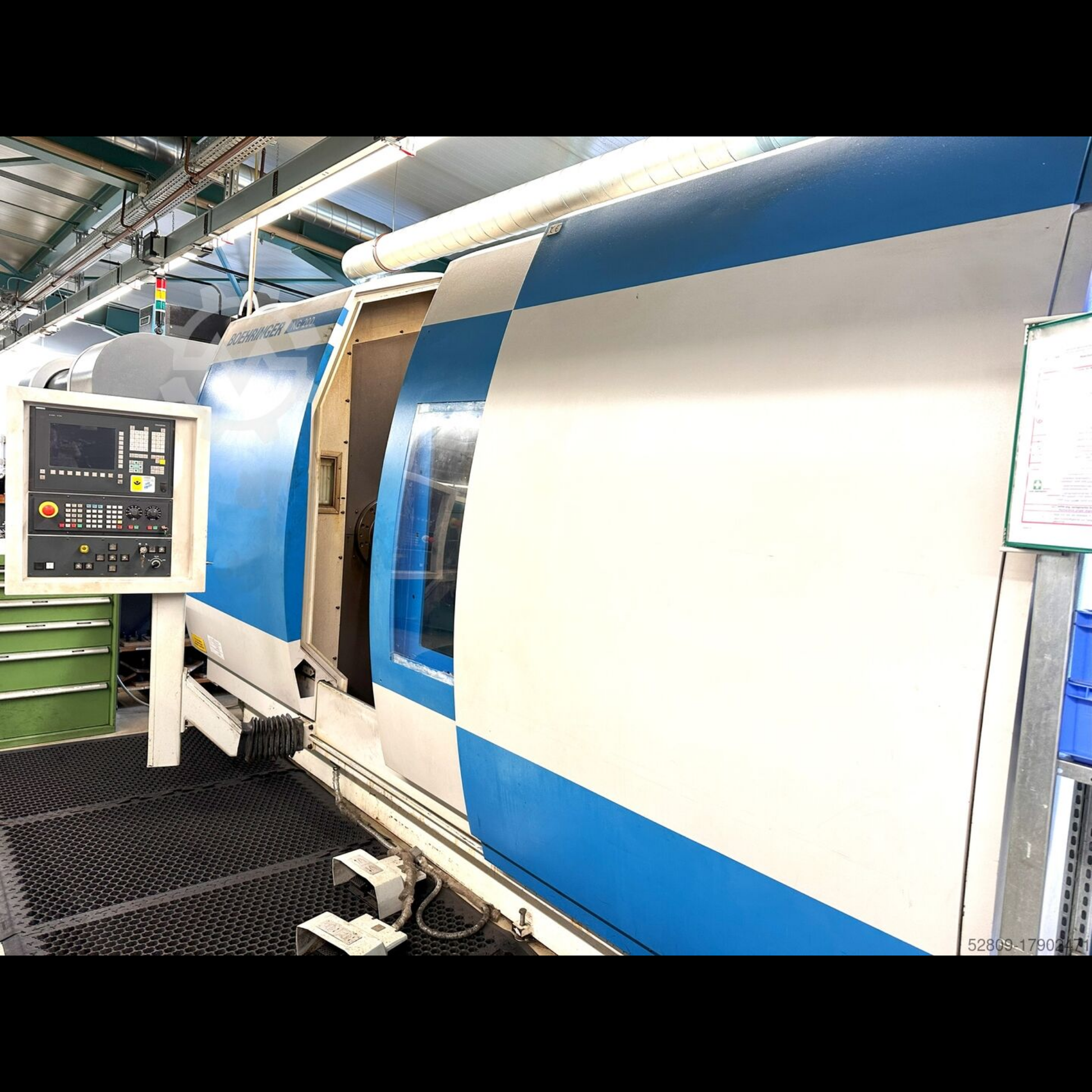

Boehringer NG 200 2/2 CNC lathe - Lathe machine

Year of manufacture 2004
from first owner
CE conformity label

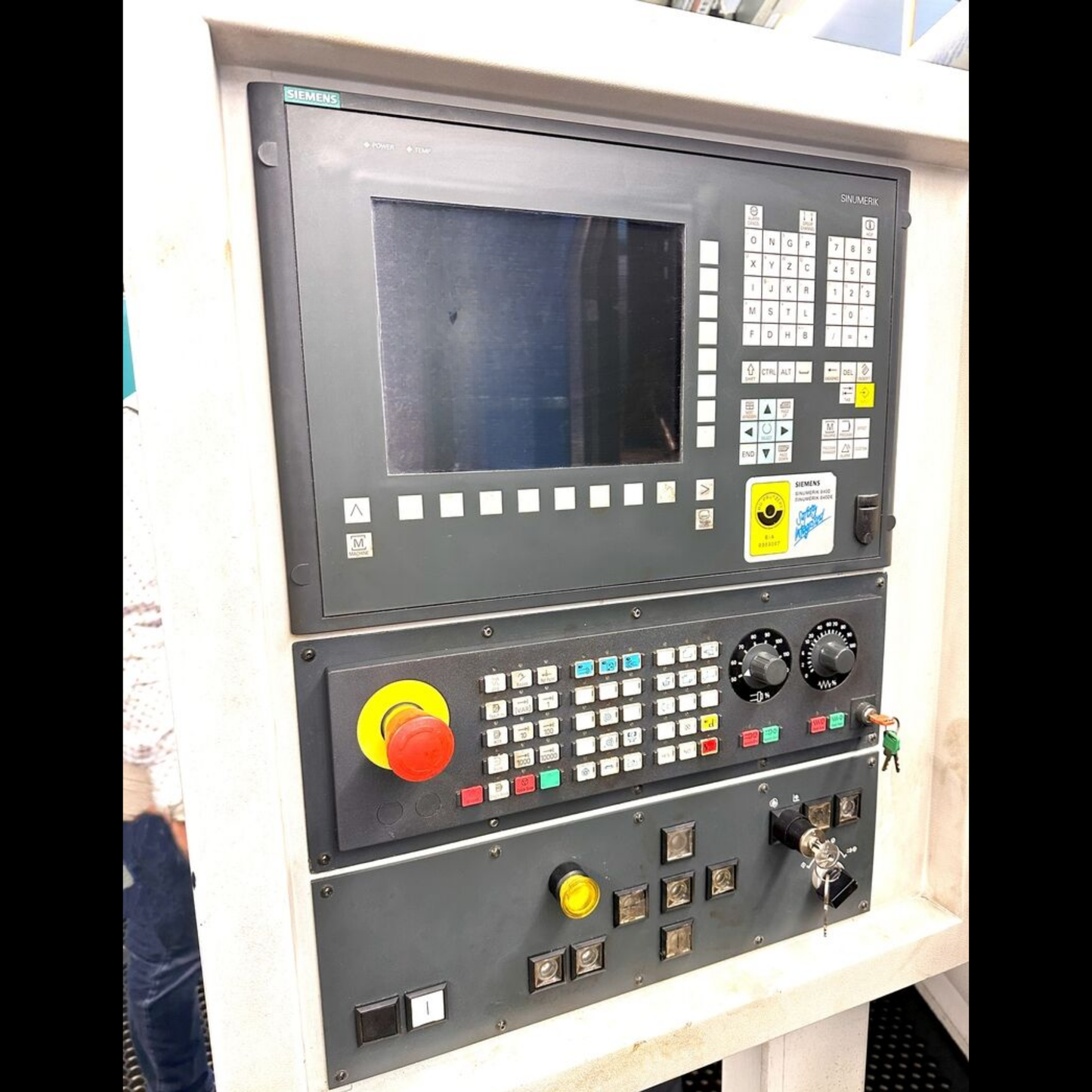

Control/Control Unit: Sinumerik 840D
-Chip conveyor

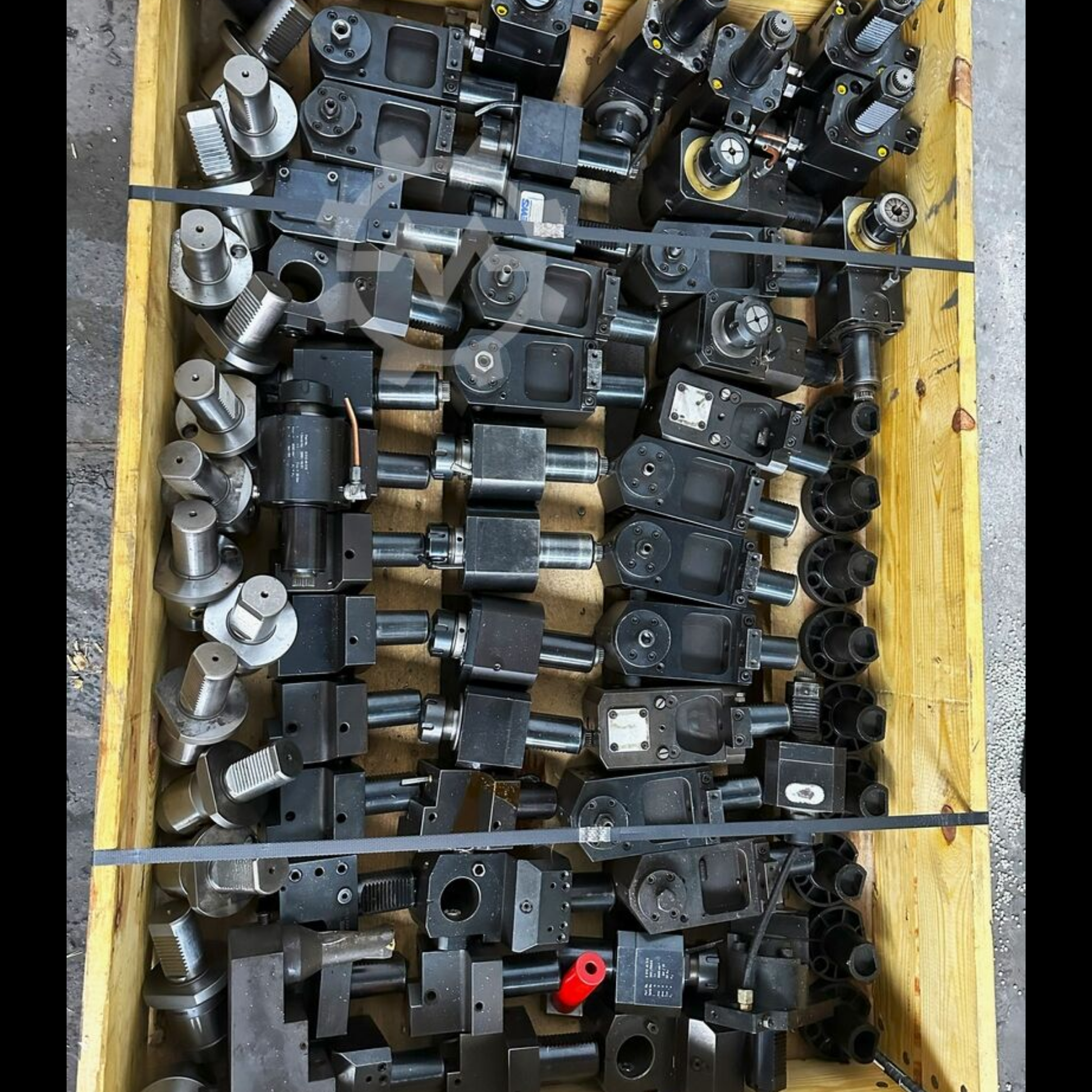

-Many different tool holders/tools
-PLC with Profibus peripherals - "DESINA" (decentralized installation system)
-Tool carrier top right and one tool carrier bottom right. 1 support top right with 2 controlled axes - 1 support bottom right with 2 controlled axes
-Turning length: 850 mm
-Swing diameter over bed 600 mm
-Turning diameter with external tools 290 mm
-"Safety-integrated" (integrated safety technology)
Nsbinjvcm Rie R E Duewi

! One turret (Sauter) is defective/in need of repair - can be repaired on request!
Price/offer applies to current condition.

Tool carrier top right with 12 cylindrical shank mounts DIN69880-40x63 in radial design Tool carrier bottom right with 12 cylindrical shank mounts DIN69880-40x63 in radial design
Main spindle direct drive Water-cooled motor spindle Max. power 47 kW at 40% duty cycle Max. torque 640 Nm at 40% duty cycle Speed range 0 - 4500 min-1
Main spindle head size A6 according to DIN 55026 - spindle diameter in the front bearing 130 mm
Spindle bore Ø 82 mm - clamping drive with full clamping cylinder for clamping devices
Chip conveyor with coolant device Chip discharge on the right
SELF-CENTERING REST hydraulically operated Guide elements: rollers Guide range: Ø 12 - 152 mm centrally lubricated - self-centering steadies

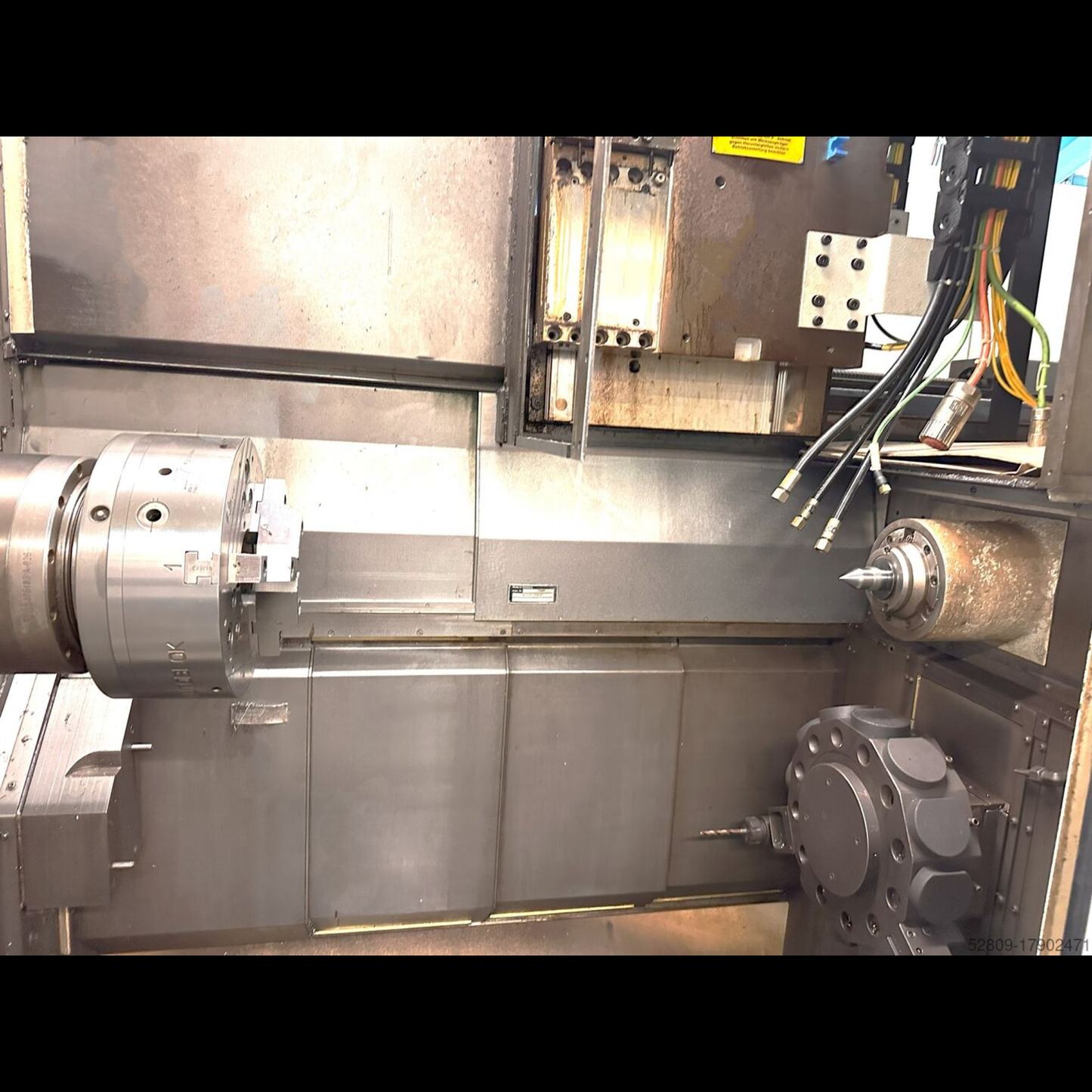

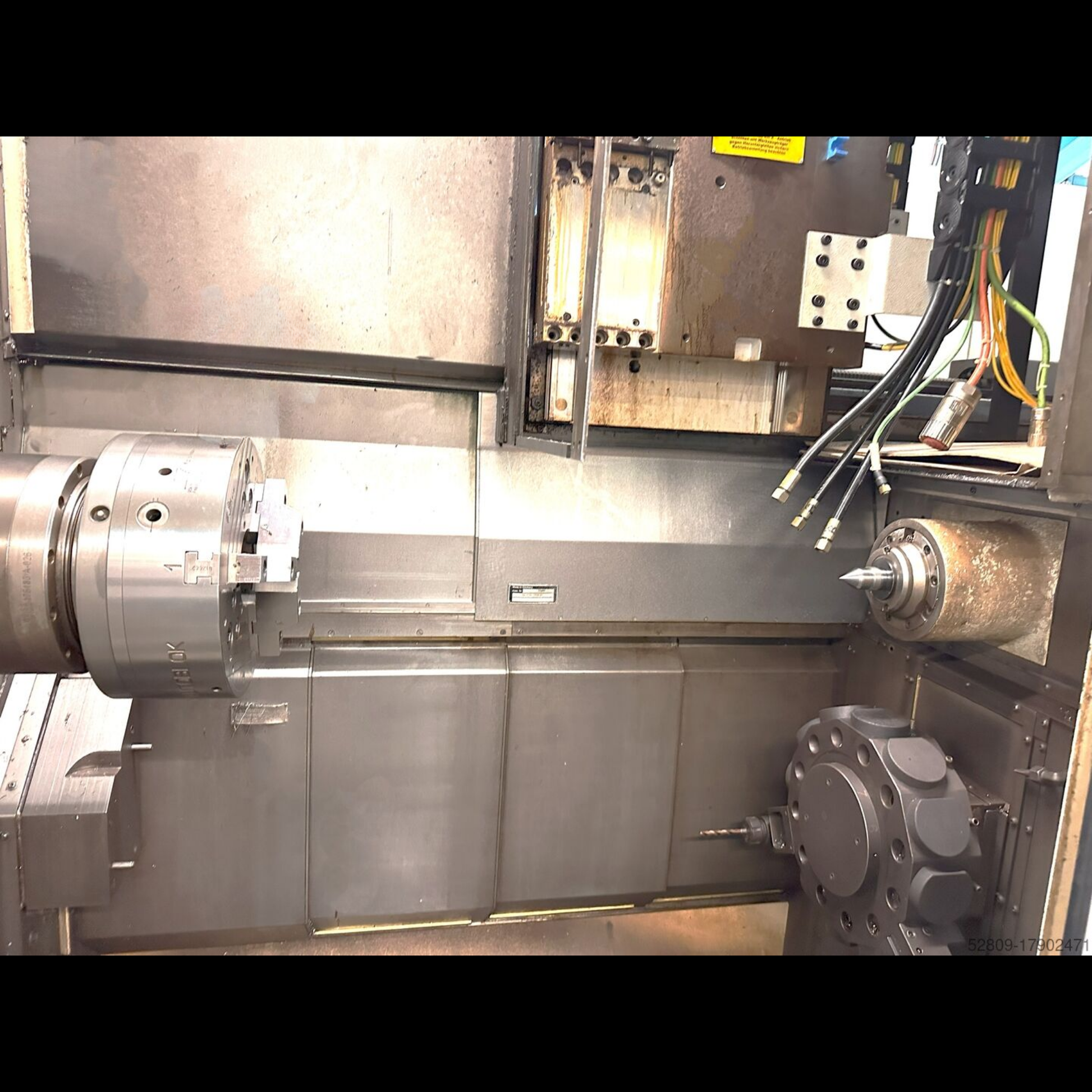

Tailstock NC-controlled on its own guideway, can be completely moved around freely programmable contact pressure 3000 - 8000 N built-in bearing - steep taper ISO 30, 1 replaceable centering point
Lunette slide bottom left NC-controlled
Self-centering lunette hydraulically operated
Guide elements: rollers guide area: Ø 12 - 152 mm centrally lubricated
Workpiece scraper for self-centering lunette
Standard paint finish: two-component paint finish on synthetic resin-based structure. Pure white, similar to RAL 9010 Telegrau

Accessories: Lynette - various tools - chip conveyor
Machine weight approx. [weight]: 11 t
Space requirement approx. [needed space]: 6.0x2.3x2.5 m
Complete documentation is available.
Inspection under power can be carried out at short notice.
We are happy to answer any further questions you may have. Price, ex warehouse here plus VAT.
Condition: good - ready for demonstration
Delivery: ex warehouse - as seen
Payment: net - after receipt of invoice
